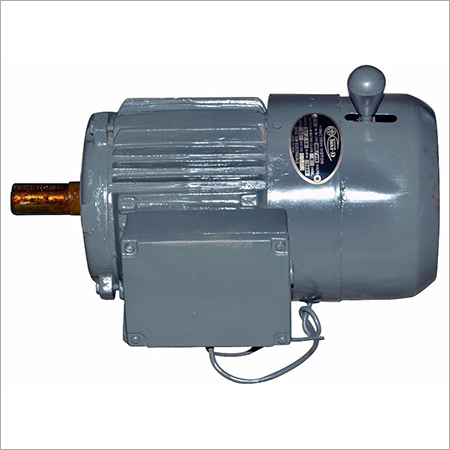

DC Brake Motor

Get a Price/Quote

MOQ : 1 Piece

DC Brake Motor Specification

Horse Power
0.5 HP to 10 HP

Rated Voltage
415 V

Features
Quick Braking, Low Maintenance, Robust Design

Power Rating
Up to 7.5 kW

Motor Type
Induction Motor with DC Brake

Torque
High Starting Torque

Starting Type
Direct On Line (DOL)

Current Type
AC Supply with DC Brake

Poles Number
4

Pressure
Standard Atmospheric Pressure

Cooling Method
Fan Cooled

Noise Level
70 dB

Rated Frequency
50 Hz

Efficacy
IE2 Standard

Ambient Temperature
-15C to +50C

Voltage
415 V

Sealed Type
Dust & Moisture Proof

Bearing Type
Heavy Duty Ball Bearing

Standard
IS: 325

Product Type
DC Brake Motor

Output Power
0.5 HP to 10 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM

Power
0.37 kW 7.5 kW

Color
Grey

Dimension (L*W*H)
380mm x 225mm x 290mm

Weight
32 kg

Shaft Diameter
28 mm

Mounting Type
Foot Mounted

IP Rating
IP55

DC Brake Motor Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
3 Pieces Pieces Per Month

Delivery Time
4 Days

About DC Brake Motor

DC Break Motor we make is a premium quality motor which is an important part of conveyors, material handling equipment, elevators, bending machines and much more. This item has high torque brake with a manual brake release. It also comes with the self-healing medium voltage capacitor and automatic drain plugs. Materials used to make this product make it highly durable and long lasting service life. Our team of experts have quality tested this product to be set with the industrial standards and we offer them to our customers in the most cost-efficient market pricing.

Technical specification :

H.P	0.5 H.P to 10.0 H.P
R.P.M	720/960 / 1440
Frame	100F / 112F/ 132F
Rating	0.37 to 7.46kw
Application	Textile industry & Elevator Industrial

Product Details :

Power (Watts or HP)	0.5 HP to 10.0 HP
Motor Voltage	220/440 V
Motor Brand	TRIPLE-D
Phase	Single Phase
Speed (Rpm)	540 to 2800

H.P. :- 0.5 HP TO 10.0 HP.
Power Rating:- 0.37 to 7.45 kw.
Voltage:- 440 V & 230 V
Speed (RPM):- 540/ 720 /960 / 1440/2800.
Frame :80 F/ 90 F / 100 F / 112 F/ 132 F.

Types Of Brakes :-

Single Phase Brake.
AC Brake.
DC Brake.
Electromagnetic Brake.
AC Fail safe Brake.

Price Range:-Rs 5000-25000/-
Applications:- Industrial Lift, Crane Duty, Hoist Duty & General engineering Purpose.

In order to retain remarkable position in this industry, we are providing a wide array of Brake Motors.

Additional Information :

Pay Mode Terms: T/T (Bank Transfer),Other
Port of Dispatch: SURAT
Production Capacity: 3500 PER MONTH.
Delivery Time: 3 DAYS
Packaging Details: AS PER CLIENT REQUIREMENT.

Reliable and Safe Performance

The motor integrates a DC fail-safe electromagnetic brake, providing immediate braking action in case of power failurecrucial for environments where safety and rapid stopping are required. The totally enclosed fan cooled (TEFC) enclosure and IP55 rating ensure optimum operation even in challenging industrial conditions.

Engineered for Durability

Manufactured with a cast iron frame and heavy-duty ball bearings, this motor is designed for longevity and minimal maintenance. The sealed-for-life lubrication system and thermally protected windings extend service intervals, making it an excellent choice for factories and material handling facilities seeking continuous, reliable operation.

FAQs of DC Brake Motor:

Q: How does the electromagnetic DC fail-safe brake function in this motor?

A: The fail-safe electromagnetic DC brake activates instantly when power is lost, bringing the motor to a quick and controlled stop. This enhances operational safety in applications such as cranes, hoists, and machine tools, protecting both equipment and personnel.

Q: What types of industrial applications are best suited for this DC Brake Motor?

A: This motor is specifically engineered for heavy-duty applications like cranes, hoists, material handling equipment, and precise machine tools, thanks to its robust construction, high starting torque, and quick braking capability.

Q: When is it necessary to use the star/delta connection provided by this motor?

A: The star/delta connection is typically used during the motors startup phase to limit inrush current and reduce electrical stress, especially in three-phase setups. Once the motor achieves operational speed, it switches to delta mode for normal running.

Q: Where can this DC Brake Motor be installed given its enclosure and protection features?

A: Due to its totally enclosed fan cooled (TEFC) enclosure, IP55 rating, and dust and moisture-proof design, this motor is suitable for installation in indoor and harsh industrial settings exposed to contaminants or humidity.

Q: What is the process for connecting the DC brake to an AC supply?

A: The motor is supplied from a 415V, 50Hz AC line, but the electromagnetic brake is operated via a built-in rectifier that converts AC to 190V DC. This ensures reliable brake engagement every cycle with simple wiring.

Q: What is the benefit of having sealed-for-life lubrication and thermally protected windings?

A: Sealed-for-life lubrication minimizes maintenance and downtime, while thermal protection safeguards the motor from overheating, ensuring consistent, trouble-free operation and extended equipment lifespan.
